Solid-State RF vs Magnetron: Why Precision Is Replacing Brute Force Power
For decades, magnetrons have been the standard source of microwave energy in many industrial and consumer applications. They are familiar, powerful and widely used. But as RF and microwave energy applications become more demanding, the limitations of magnetron-based systems are becoming harder to ignore.
Today, solid-state RF energy is changing the way engineers think about microwave power. Instead of treating RF energy as a fixed, brute-force heat source, solid-state technology makes it possible to control power, frequency, phase and modulation with far greater precision.
This shift is especially relevant in industrial heating, plasma applications, food processing, medical technology, plasma lighting and other advanced RF energy systems.

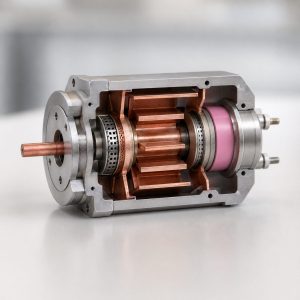

What is a magnetron?
A magnetron is a vacuum tube device used to generate microwave power. It has been used for many years in domestic microwave ovens, industrial heating systems and other microwave-powered applications.
Magnetrons are effective when the application mainly requires high microwave power. However, they offer limited control over the energy being delivered. In many systems, the magnetron output is not easily adjustable with the speed, precision or repeatability required by modern industrial processes.
This is why magnetrons are often described as a “brute force” solution: they can deliver energy, but they are not always well suited to applications where the process needs to be actively controlled.
What is solid-state RF energy?
Solid-state RF energy uses transistor-based technology to generate radio frequency or microwave power. Instead of relying on a vacuum tube, solid-state systems use semiconductor devices to create and amplify controlled RF fields.
The key difference is control.
With solid-state RF, parameters such as power level, frequency, phase and pulse modulation can be adjusted with a high level of accuracy. This makes the RF source more responsive to the application, especially when the load changes during the process.
pinkRF describes solid-state RF energy as a highly controlled energy source that can support industrial, medical, pharmaceutical and scientific applications.
Solid-state RF vs magnetron: the main differences
Control
The biggest difference between solid-state RF and magnetron technology is controllability.
A magnetron typically offers limited adjustment of output power and frequency. In changing process conditions, this can make it difficult to maintain consistent energy delivery.
Solid-state RF generators, by contrast, can provide precise control over several RF attributes. pinkRF RF power generators support control of frequency, level, phase and PWM modulation, enabling more flexible and application-specific energy delivery.
For industrial users, this means the RF system can become part of the process control strategy instead of simply acting as a power source.
Process repeatability
In many RF and microwave applications, repeatability is everything.
Whether the system is used for industrial heating, plasma generation, drying, cooking or medical energy delivery, inconsistent power behavior can affect the final result.
Solid-state RF and microwave technology helps improve repeatability because it can deliver stable, programmable and measurable power. This is especially valuable in applications where the material, load or plasma behavior changes over time.
Better control leads to better process consistency.
Reliability and lifetime
Magnetrons degrade over time and may require maintenance or replacement, especially in demanding industrial environments. This can lead to downtime, service costs and variations in process performance.
Solid-state RF equipment is designed for greater robustness and long-term stability. pinkRF highlights the reliability and durability of its solid-state microwave generators, as well as real-time monitoring and automated operation features.
For industrial operations, reliability is not just a technical benefit. It has a direct impact on productivity, maintenance planning and total cost of ownership.
Energy delivery
A traditional magnetron-based system delivers microwave energy with limited feedback and limited adaptive control.
Solid-state RF systems can be designed to optimize energy delivery into the application. This is particularly important when working with changing dielectric properties, reflected power or dynamic loads.
pinkRF power amplifiers include built-in couplers and detectors for forward and reflected RF power levels, supporting better insight into what is happening inside the RF system.
In practical terms, this allows engineers to move from “generate power” to “manage power”.
System integration
Modern RF applications often need more than a standalone generator. They require software control, monitoring, interfaces, safety features and sometimes multi-channel architectures.
Solid-state RF technology is better suited to these requirements because it can be integrated into programmable and scalable systems.
pinkRF RF generators provide software support, including GUI control, API access, programming examples and LabVIEW instrument driver availability. This makes integration easier for engineering teams developing advanced RF energy systems.
Where solid-state RF is replacing magnetrons
Solid-state RF is not limited to one industry. It is being adopted or explored across a wide range of applications, including:
- Industrial heating and drying
- Food processing
- Plasma generation
- Plasma lighting
- Commercial cooking
- Medical treatments such as hyperthermia and ablation
- Pharma processing
- New RF energy applications
The common requirement across these applications is the same: better control over the energy source.
Why “more power” is no longer enough
In the past, microwave system performance was often associated mainly with power level. But in advanced applications, power alone is not enough.
Engineers increasingly need to control how energy is delivered, when it is delivered and how the system reacts to changing conditions.
This is where solid-state RF becomes a strategic technology. It supports more precise power delivery, better feedback, more flexible operation and a stronger foundation for process optimization.
The future of RF energy is not simply higher power. It is smarter power.
Choosing the right RF energy source
Choosing between a magnetron and a solid-state RF generator depends on the application.
For simple, cost-sensitive systems where limited control is acceptable, magnetron technology may still be used. But for applications where precision, repeatability, reliability and integration matter, solid-state RF offers clear advantages.
The right choice should consider:
- Required power level
- Frequency range
- Load behavior
- Process stability requirements
- Reflected power management
- Software and interface needs
- Lifetime and maintenance expectations
- Scalability of the final system
A complete RF energy solution requires not only the right generator, but also the right applicator, matching approach, monitoring, control logic and system design.
Conclusion
Magnetrons helped build the microwave energy industry. But modern RF applications require a different level of precision.
Solid-state RF technology gives engineers the ability to control microwave energy in ways that magnetrons cannot easily match. From industrial heating to plasma applications and medical systems, the shift from brute-force power to programmable energy delivery is already redefining what RF systems can do.
For companies developing next-generation RF energy applications, solid-state RF is not just a magnetron replacement. It is a platform for better control, better reliability and better process performance.
Frequently Asked Questions
What is the difference between solid-state RF and a magnetron?
A magnetron is a vacuum tube microwave source with limited control, while solid-state RF uses transistor-based technology to deliver more precise, programmable and stable RF energy.
Why is solid-state RF better for industrial applications?
Solid-state RF can improve control, repeatability, monitoring and reliability, which are important in industrial heating, plasma systems, food processing and advanced RF energy applications.
Can solid-state RF replace magnetrons?
Yes, in many applications solid-state RF can replace magnetrons, especially when the process requires better control, longer lifetime, software integration or adaptive power delivery.
What industries use solid-state RF energy?
Solid-state RF energy is used in industrial, medical, pharmaceutical, scientific, food processing, plasma and lighting applications.
