What is reflected power?

In a typical RF energy system, the generator sends power through a transmission path, usually including coaxial cables, connectors, matching elements, applicators and the final load.

Forward power is the power traveling from the RF source toward the application.

Reflected power is the sum of return losses of the different components, and the power that is not absorbed by the load and travels back toward the source.

This usually happens when there is an impedance mismatch somewhere in the system. The load, applicator, cable or matching network may not be accepting the RF energy efficiently, so part of the energy is reflected.

In a well-designed system, reflected power is monitored carefully because it tells engineers whether RF energy is being transferred efficiently, safely and consistently.

Why reflected power matters

It shows how efficiently energy is being delivered

RF energy systems are not only about generating power. They are about transferring energy into a specific process.

If reflected power is high, it may indicate that the system is not coupling energy efficiently into the application. This can reduce overall process efficiency and make the system harder to control.

In applications such as industrial heating or drying, poor energy coupling can mean slower processing, uneven heating or wasted power.

In plasma applications, reflected power can point to unstable plasma conditions or poor matching between the RF source and the plasma load.

It helps protect the RF system

Reflected power can place stress on RF components.

When energy travels back toward the generator or amplifier, it may increase thermal or electrical stress on the system. If this is not properly managed, it can affect reliability and lifetime.

This is why many RF energy systems include protection mechanisms and monitoring features. pinkRF power amplifiers, for example, are equipped with built-in couplers and detectors for both forward and reflected RF power levels. They also include internal protection safety features designed to maximize generator lifetime.

For engineers, monitoring reflected power is therefore not just useful for performance. It is also part of system protection.

It provides feedback for tuning and matching

Reflected power is a direct indicator of how well the system is matched.

When the applicator and load are well matched to the RF source, more energy is absorbed and less energy is reflected. When the match is poor, reflected power increases.

This makes reflected power valuable during system setup, tuning and optimization.

It can help engineers identify whether the issue is related to the applicator, the load, the matching network, cable losses, connectors or changing process conditions.

In other words, reflected power helps engineers move from guesswork to measurable system behavior.

Reflected power in dynamic RF loads

Many RF energy applications do not have a fixed load.

In industrial heating, the material may change as it heats. Moisture content, temperature and dielectric properties can evolve during the process.

In plasma systems, the load can change during ignition, operation and process transitions. Pressure, gas composition, chamber geometry and plasma behavior can all affect how energy is coupled.

In cooking or defrosting applications, the load may change continuously as the food warms, thaws or changes composition. This means the RF system must deal with a moving target.

A static setup may work well at one moment, but not throughout the entire process. That is why reflected power monitoring becomes especially important in real-world RF energy systems.

Reflected power and S11

In RF engineering, the Scattering Parameter S11 is commonly used to describe how much energy is reflected from a load or network input. A lower reflected signal generally indicates better matching and more efficient energy transfer.

For RF energy applications, S11-related information can be used to understand and optimize how the system interacts with the load.

pinkRF RF power generators include proprietary technology for very fast S11 sweep over frequency, supporting self-optimizing RF energy delivery. This is particularly relevant for applications where the load changes over time and the system needs to adapt.

This is where reflected power becomes more than a diagnostic signal.

It becomes part of the control strategy.

Why solid-state RF improves reflected power management

Traditional RF and microwave sources can deliver high power, but they often provide limited control over how that power is adjusted in response to changing conditions.

Solid-state RF technology offers a different approach.

With solid-state RF generators, engineers can control parameters such as frequency, power level, phase and pulse modulation with much greater precision. pinkRF’s microwave power generators support high-resolution control of frequency, power level, phase and PWM modulation, as well as software support including GUI control, API access and LabVIEW driver availability.

For example, the system may adjust frequency, reduce power, change operating mode or trigger protection depending on reflected power behavior.

That is a major advantage in applications where process stability and equipment protection are critical.

Application examples

Industrial heating

In industrial heating, reflected power can indicate whether the material is absorbing RF energy effectively.

As the material heats, its properties may change. If the generator cannot adapt, the process may become less efficient or less consistent.

Monitoring reflected power helps engineers understand how energy absorption evolves during the heating cycle.

Plasma applications

Plasma loads can be highly dynamic.

During ignition and operation, impedance can change rapidly. Reflected power monitoring helps engineers detect instability, improve matching and protect the RF source.

For plasma applications, reflected power is often one of the most important process signals.

Medical and scientific RF systems

In medical, pharmaceutical or scientific systems, process control and repeatability are essential.

Reflected power can provide valuable feedback about how energy is being delivered into the target application, helping engineers design safer, more controlled and more predictable systems.

What engineers should consider

When designing or selecting an RF energy system, reflected power should be considered from the beginning.

Important questions include:

• How will forward and reflected power be measured?

• What level of reflected power is acceptable for the application?

• How dynamic is the load?

• Is a matching network required?

• Can the generator adapt to changing load conditions?

• Are protection mechanisms built into the system?

• Can reflected power data be integrated into software control?

• Is the system designed for prototype testing, production or both?

These questions can help avoid problems later in development.

Why companies are replacing magnetrons

Magnetrons have been widely used because they can generate high microwave power at relatively low cost. For many years, that was enough.

However, advanced RF energy applications now require a higher level of process control.

In industrial heating, drying, plasma systems, chemistry, pharma, food processing or scientific applications, the load can change during operation. Temperature, moisture content, material properties, plasma impedance or process geometry may evolve over time.

A conventional magnetron-based system has limited ability to react to these changes.

That limitation can affect process consistency, efficiency, maintenance and long-term reliability.

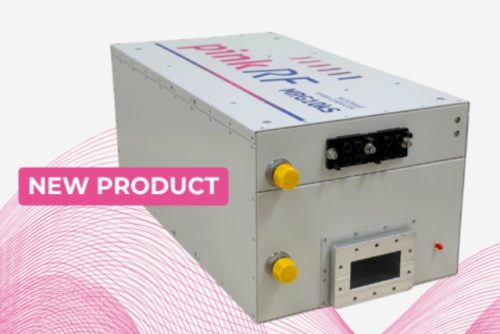

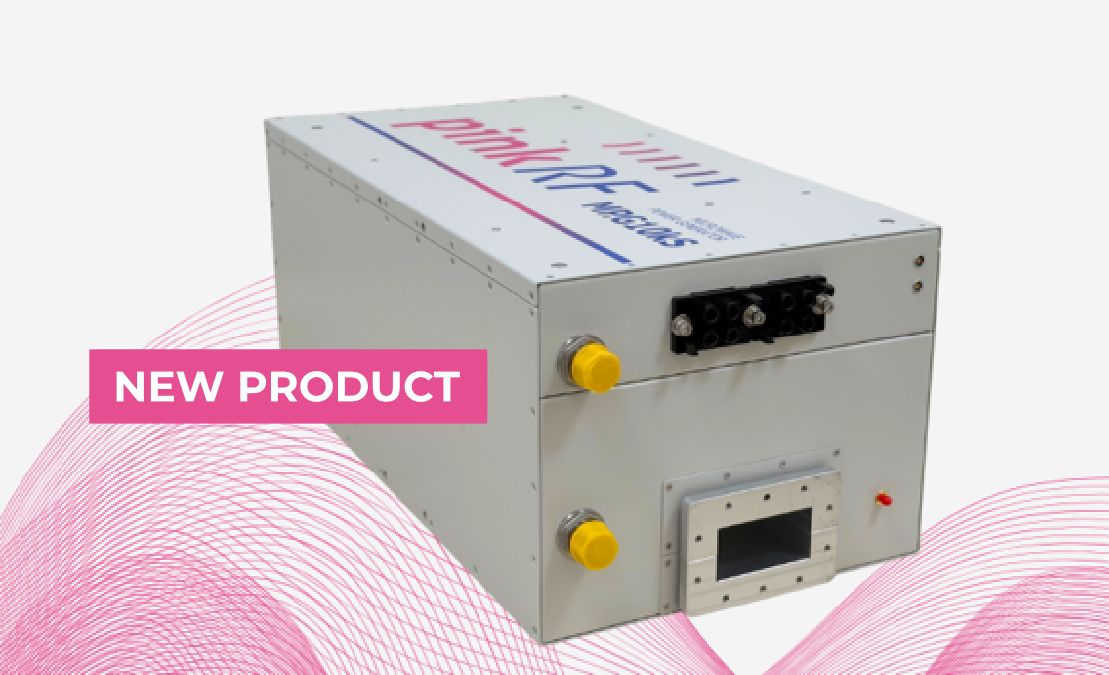

This is one of the reasons we developed the MPG6kS and MPG10kS, our 6 and 10kW solid-state microwave power generators designed as a magnetron alternative for the 2.45 GHz ISM band.

For us, the objective is not only to replace magnetron power.

The objective is to give engineers a more precise, reliable and controllable RF energy platform.

Magnetron replacement is only the beginning

Replacing a magnetron with a solid-state RF generator is a major step forward.

But the real value is not only in removing the magnetron.

The real value is what becomes possible after the replacement.

Solid-state RF technology allows engineers to control power, frequency, phase and modulation with far greater precision. This creates a foundation for adaptive energy delivery, better process repeatability and more intelligent system behavior.

Instead of simply generating microwave power, the system can start managing RF energy.

That is the difference between a replacement and an upgrade.

From fixed power to programmable energy

A magnetron is typically limited in how precisely it can control RF output.

Solid-state RF generators change that by making the energy source programmable.

Our RF power generators are designed to be flexible, rugged and programmable, supporting RF energy applications across different frequency bands and power levels.

For engineering teams, this means the RF source can be integrated into the complete process architecture.

Power delivery can be adjusted, recipes can be developed, feedback can be used, operating modes can be controlled, data can be captured, systems can become easier to automate and scale.

That is where solid-state RF becomes strategic.

The role of control in smart RF energy systems

Smart RF energy systems depend on control.

Not just basic on/off control.

Real control.

This includes frequency control, power level control, phase control, PWM modulation, forward and reflected power monitoring, S11-based optimization, software communication, open-loop and closed-loop operation, and application-specific process recipes.

In our RF generators, we focus on giving engineers the tools they need to shape how RF energy is delivered into the application.

This matters because many RF loads are dynamic.

A smart system can use feedback to understand what is happening between the RF source and the application, then respond accordingly.

That is a very different mindset from traditional microwave power delivery.

Reliability and lifetime

One of the most practical reasons for replacing magnetrons is reliability.

Magnetrons degrade over time and may require replacement, especially in demanding industrial environments. Solid-state RF systems remove the vacuum tube from the architecture and support more consistent long-term performance.

For production environments, this can have a direct operational impact.

Less unexpected downtime.
More stable output.
More predictable maintenance.
Better process repeatability.

In high-value applications, reliability is not a secondary benefit.

It is part of the business case.

Why RF generators matter in plasma applications

A plasma process depends on controlled energy delivery.

The generator must provide enough RF power to ignite, maintain, and control the plasma, while also responding to changing process conditions. These conditions may include pressure, gas composition, chamber geometry, material surface properties, and plasma impedance.

In practice, this means the RF generator must do more than generate power. It must support a stable interaction between the RF source, the matching network, the applicator, and the plasma itself.

When this interaction is not well controlled, engineers may face unstable plasma behavior, poor repeatability, inefficient energy transfer or higher stress on system components.

Key requirements for RF plasma generators

1. Precise power and pulse control

Power control is one of the most important requirements in RF plasma systems.

Too little power may result in unstable or incomplete plasma ignition. Too much continuous power can create process instability, excessive heating, or unwanted effects on the treated material.

This is where solid-state RF technology becomes especially valuable.

Unlike traditional magnetron-based approaches, solid-state RF generators can control not only the power level, but also how that power is delivered over time. Through PWM, or pulsed wave modulation, engineers can apply high peak power during controlled pulses while keeping the average thermal load lower.

For plasma applications, this can be critical. Pulsed RF energy can help sustain or influence plasma behavior without unnecessarily increasing the temperature of the material being processed.

This makes it possible to define operating windows, optimize process recipes, improve repeatability, and better balance plasma performance with thermal management.

For plasma applications, precise power delivery is not a luxury, it is a baseline requirement.

2. Frequency control

In plasma systems, frequency can influence how energy couples into the plasma.

Depending on the application, chamber design and load behavior, small frequency adjustments may help improve energy transfer or process stability. This is especially relevant when the plasma load changes during operation.

pinkRF RF power generators support high-resolution control of RF attributes such as frequency, level, phase and PWM modulation. This gives engineers more flexibility when developing or optimizing plasma processes.

3. Reflected power monitoring

Reflected power is one of the clearest indicators of how efficiently RF energy is being transferred into the application.

In an ideal system, most of the forward power is absorbed by the load. In real plasma applications, however, the load can change quickly. When the impedance changes, part of the energy can be reflected back toward the generator.

Monitoring reflected power helps engineers understand what is happening in the RF path. It can support better protection, better tuning, and better process insight.

In plasma applications, reflected power is not just a measurement, it is feedback.

4. Matching and energy coupling

A plasma process requires efficient coupling between the RF source and the plasma load.

This usually involves careful consideration of the applicator, impedance matching, cables, connectors, and chamber design. Even a strong RF generator will not perform well if the energy cannot be delivered efficiently into the plasma.

That is why RF plasma development should be approached as a complete system challenge, not simply as a generator selection exercise.

The generator, matching network, applicator, and plasma chamber must work together.

5. Fast response to dynamic loads

Plasma is not a static load.

Its electrical behavior can change during ignition, operation, and process transitions. Gas flow, pressure, temperature, surface interaction, and chemistry may all affect how the plasma responds to RF energy.

For this reason, engineers need RF generators that can react quickly and support stable operation under changing conditions.

Solid-state RF technology is particularly valuable here because it enables programmable and adaptive energy delivery.

Solid-state RF vs traditional RF power source

Traditional RF or microwave sources can deliver high power, but they may offer limited control, limited feedback, or reduced flexibility.

Solid-state RF generators offer a different approach. They allow more precise control of power, frequency, phase, and modulation, and they can be integrated into software-driven systems.

For engineers, this creates several advantages:

• More stable plasma operation

• Better process repeatability

• Easier integration with control systems

• Improved monitoring of RF behavior

• Greater flexibility during application development

• Stronger foundation for automation and optimization

This is especially important in industries where plasma performance directly affects product quality, surface treatment, chemical reaction behavior or process yield.

Common plasma application areas

RF plasma technology can support a wide range of processes, including:

• Semiconductor processing

• Chemical processes

• Surface activation

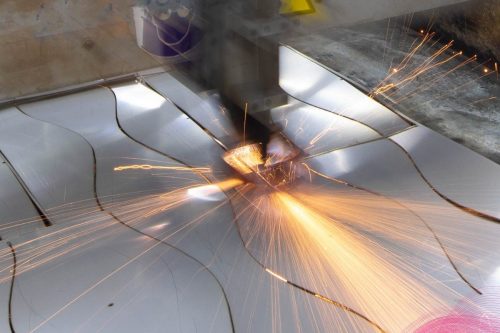

• Metal cutting

• Plasma cleaning

• Rapid heating

• Cosmetic applications

• Medical and scientific plasma research

Each of these applications has different requirements, but they all depend on controlled RF energy delivery. This is where generator selection becomes strategic.

What engineers should consider before choosing an RF generator

When evaluating RF generators for plasma applications, engineers should look beyond output power alone.

Important criteria include:

• Required frequency range

• Required power level

• Stability during plasma ignition

• Control resolution

• Reflected power monitoring

• Matching strategy

• Software and API integration

• Cooling and thermal management

• Multi-channel requirements

• Scalability from prototype to product

• Support for applicator and system design

A generator that works well in a lab demonstration may not automatically be the right choice for a production-ready plasma system.

The full architecture matters.

From generator to complete RF energy system

At pinkRF, RF generators are part of a broader RF energy ecosystem.

pinkRF supports the development of complete RF energy systems, from single-channel low-power RF supplies to multi-channel, coherent or incoherent high-power RF energy sources. For plasma applications, this means engineers can work not only with RF building blocks, but also with application know-how, system design support and integration expertise.

This approach is especially relevant for teams developing new plasma applications, where the technical challenge is often not only “how much power is needed?” but “how should the complete RF system behave?”

Why the “pink” in pinkRF still matters

There is also a deeper story behind the name pinkRF.

The word “pink” was chosen as a reminder of the founders’ early involvement in the development of solid-state RF energy systems with potential medical relevance. That origin still reflects an important idea: RF energy is not just industrial technology. It can also enable applications where precision, safety and control truly matter.

Plasma applications are part of that same mindset.

They require engineering discipline, careful system design and a strong focus on controllable energy delivery.

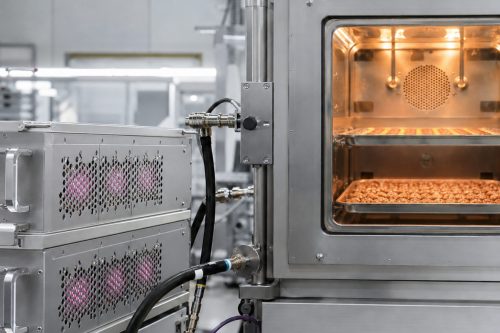

Why industrial heating needs better control

Industrial heating is not just about applying heat. It is about applying the right amount of energy, in the right place, at the right time.

In applications such as food processing, drying, pasteurization or material treatment, the load can change during the process. Moisture content, temperature, density and dielectric properties may all evolve as heating progresses.

A traditional magnetron-based system has limited ability to adapt to those changing conditions. This can lead to uneven heating, inefficient energy use or process variation.

Solid-state microwave generators help solve this by giving engineers more precise control over the RF energy source.

What are solid-state microwave generators?

Solid-state microwave generators use semiconductor technology to generate RF or microwave power. Unlike magnetrons, which are vacuum tube devices, solid-state systems are electronically controlled and can be adjusted with much greater precision.

In practical terms, this allows control over parameters such as:

• Power level

• Frequency

• Phase

• Pulse modulation

• Forward and reflected power monitoring

• Multi-channel operation

• Software-based process control

This makes the microwave generator part of the process control system, not just a power source.

More precise energy delivery

One of the strongest advantages of solid-state microwave generators is precision.

In industrial heating, precision matters because materials do not always absorb microwave energy in the same way throughout the process. As the material changes, the RF system must be able to respond.

Solid-state RF systems can adjust power output and frequency more accurately than traditional magnetrons. pinkRF RF power generators, for example, support control of frequency, level, phase and PWM modulation, helping engineers fine-tune the energy delivery for the application.

This level of control can support more stable and repeatable heating results.

Better process consistency

Consistency is one of the most important requirements in industrial production.

If a heating process behaves differently from one batch to the next, it can affect product quality, throughput and operational efficiency. Solid-state microwave generators help reduce this variability by delivering programmable and measurable RF power.

Instead of relying on a fixed or limited microwave output, engineers can design heating profiles that match the process requirements more closely.

This is especially relevant in applications such as industrial drying, food processing and pasteurization, where process repeatability directly affects quality.

Improved reliability and lifetime

In industrial environments, downtime is expensive.

Magnetrons degrade over time and may require replacement or maintenance. This can interrupt production and affect the stability of the heating process.

Solid-state microwave generators are designed for long-term stability and robustness. pinkRF highlights that solid-state RF solutions can increase RF source lifetime and reduce unscheduled downtime in industrial heating applications.

For production teams, this is not only a technical advantage. It directly supports better uptime, easier maintenance planning and a lower total cost of ownership.

Faster and more efficient heating processes

RF and microwave heating can provide volumetric heating, meaning energy can be delivered throughout the material rather than only from the surface inward.

This can help accelerate heating processes compared with conventional techniques. pinkRF identifies industrial applications such as food pasteurization and material drying as examples where RF ovens can enable faster processing and higher throughput.

When this volumetric heating capability is combined with solid-state control, the result is a more intelligent process: faster energy delivery with better control over how that energy is applied.

Better insight into reflected power

Industrial heating loads can be dynamic. As the material heats, its interaction with RF energy can change.

This is why reflected power matters. If energy is not efficiently absorbed by the load, part of it can be reflected back through the system. Monitoring this behavior is important for both process performance and system protection.

pinkRF power amplifiers include built-in couplers and detectors for forward and reflected RF power levels. This gives engineers better visibility into the RF system and helps support more controlled energy delivery.

Easier integration into advanced systems

Modern industrial heating systems often require software control, automation and integration with production equipment.

Solid-state microwave generators are well suited to this because they can be integrated with digital control systems. pinkRF RF generators include software support such as GUI control, API access, programming examples and LabVIEW driver availability.

For engineering teams, this makes it easier to develop application-specific heating systems with repeatable recipes, monitoring and automated operation.

Applications in industrial heating

Solid-state microwave generators can support a wide range of industrial heating applications, including:

• Food processing

• Pasteurization

• Packaging

• Drying of construction materials

• Commercial cooking

• Defrosting and thawing

• Chemical processing

• High-power RF energy systems

The common need across these applications is controlled energy delivery.

From heat source to process tool

The biggest shift introduced by solid-state microwave technology is conceptual.

A magnetron is mainly a microwave power source. A solid-state microwave generator can become a process tool.

It can be programmed, monitored, adjusted and integrated into a complete RF energy system. This gives companies more control over quality, performance and scalability.

For industries where precision and uptime matter, that difference is critical.

What is a magnetron?

A magnetron is a vacuum tube device used to generate microwave power. It has been used for many years in domestic microwave ovens, industrial heating systems and other microwave-powered applications.

Magnetrons are effective when the application mainly requires high microwave power. However, they offer limited control over the energy being delivered. In many systems, the magnetron output is not easily adjustable with the speed, precision or repeatability required by modern industrial processes.

This is why magnetrons are often described as a “brute force” solution: they can deliver energy, but they are not always well suited to applications where the process needs to be actively controlled.

Solid-state RF vs magnetron: the main differences

Control

The biggest difference between solid-state RF and magnetron technology is controllability.

A magnetron typically offers limited adjustment of output power and frequency. In changing process conditions, this can make it difficult to maintain consistent energy delivery.

Solid-state RF generators, by contrast, can provide precise control over several RF attributes. pinkRF RF power generators support control of frequency, level, phase and PWM modulation, enabling more flexible and application-specific energy delivery.

For industrial users, this means the RF system can become part of the process control strategy instead of simply acting as a power source.

Process repeatability

In many RF and microwave applications, repeatability is everything.

Whether the system is used for industrial heating, plasma generation, drying, cooking or medical energy delivery, inconsistent power behavior can affect the final result.

Solid-state RF and microwave technology helps improve repeatability because it can deliver stable, programmable and measurable power. This is especially valuable in applications where the material, load or plasma behavior changes over time.

Better control leads to better process consistency.

Reliability and lifetime

Magnetrons degrade over time and may require maintenance or replacement, especially in demanding industrial environments. This can lead to downtime, service costs and variations in process performance.

Solid-state RF equipment is designed for greater robustness and long-term stability. pinkRF highlights the reliability and durability of its solid-state microwave generators, as well as real-time monitoring and automated operation features.

For industrial operations, reliability is not just a technical benefit. It has a direct impact on productivity, maintenance planning and total cost of ownership.

Energy delivery

A traditional magnetron-based system delivers microwave energy with limited feedback and limited adaptive control.

Solid-state RF systems can be designed to optimize energy delivery into the application. This is particularly important when working with changing dielectric properties, reflected power or dynamic loads.

pinkRF power amplifiers include built-in couplers and detectors for forward and reflected RF power levels, supporting better insight into what is happening inside the RF system.

In practical terms, this allows engineers to move from “generate power” to “manage power”.

System integration

Modern RF applications often need more than a standalone generator. They require software control, monitoring, interfaces, safety features and sometimes multi-channel architectures.

Solid-state RF technology is better suited to these requirements because it can be integrated into programmable and scalable systems.

pinkRF RF generators provide software support, including GUI control, API access, programming examples and LabVIEW instrument driver availability. This makes integration easier for engineering teams developing advanced RF energy systems.

Where solid-state RF is replacing magnetrons

Solid-state RF is not limited to one industry. It is being adopted or explored across a wide range of applications, including:

• Industrial heating and drying

• Food processing

• Plasma generation

• Plasma lighting

• Commercial cooking

• Medical treatments such as hyperthermia and ablation

• Pharma processing

• New RF energy applications

The common requirement across these applications is the same: better control over the energy source.

Why “more power” is no longer enough

In the past, microwave system performance was often associated mainly with power level. But in advanced applications, power alone is not enough.

Engineers increasingly need to control how energy is delivered, when it is delivered and how the system reacts to changing conditions.

This is where solid-state RF becomes a strategic technology. It supports more precise power delivery, better feedback, more flexible operation and a stronger foundation for process optimization.

The future of RF energy is not simply higher power. It is smarter power.

Choosing the right RF energy source

Choosing between a magnetron and a solid-state RF generator depends on the application.

For simple, cost-sensitive systems where limited control is acceptable, magnetron technology may still be used. But for applications where precision, repeatability, reliability and integration matter, solid-state RF offers clear advantages.

The right choice should consider:

• Required power level

• Frequency range

• Load behavior

• Process stability requirements

• Reflected power management

• Software and interface needs

• Lifetime and maintenance expectations

• Scalability of the final system

A complete RF energy solution requires not only the right generator, but also the right applicator, matching approach, monitoring, control logic and system design.

What makes solid-state RF energy different?

In many conventional microwave systems, the energy source is a magnetron. Magnetrons have been widely used for decades, but they offer limited controllability and their output can degrade over time. For industrial and scientific processes, this can create challenges in terms of repeatability, maintenance and process optimization.

Solid-state RF energy changes the equation. By using transistor-based technology, RF systems can react faster, deliver more stable power and adapt to changing application conditions. For engineers and system designers, this opens the door to more intelligent RF energy delivery.

Key RF energy applications

New RF energy applications

The potential of RF energy is still expanding. Automotive ignition, novel lighting, advanced medical systems and other emerging applications are all being explored as solid-state RF technology becomes more accessible and economical.

For companies developing new RF-powered products, the key challenge is often not only choosing a generator, but designing the complete system around it: the RF source, applicator, matching, control software, safety architecture and user interface.

Why control is the real advantage

Across all these applications, the common denominator is control.

RF energy is not just about delivering power. It is about delivering the right power, at the right frequency, in the right way, to achieve a specific process result. This is where solid-state RF and microwave generators become especially valuable.

With programmable RF generators, multi-channel architectures, real-time monitoring and application-specific control, engineers can move from “power delivery” to true process optimization.

Building complete RF energy systems

A successful RF energy application requires more than a generator. It needs the right combination of RF building blocks, applicators, software, system design and application knowledge.

pinkRF helps to develop RF energy systems and microwave building blocks for industrial, medical, pharmaceutical and scientific applications. From low-power single-channel systems to multi-channel high-power RF energy sources, the objective is to help OEM companies turn RF energy into reliable, controllable and scalable solutions.

What Is IMPI 60 — and Why Does It Matter?

The International Microwave Power Institute (IMPI) was founded in 1966 with a clear mandate: to serve the information needs of everyone involved in non-communication applications of microwave and RF energy. For six decades, IMPI’s Annual Microwave Power Symposium has been the premier global event connecting researchers, engineers, and industry professionals working across food technology, industrial heating, plasma chemistry, solid-state electronics, materials processing, and emerging applications.

IMPI 60 is a milestone edition. Taking place June 16–18, 2026, at the Westin New Orleans, it brings together exhibitors including pinkRF, Ampleon, SAIREM, MKS, MUEGGE Group, WAVEPIA, Microwave Techniques, Richardson Electronics, and Crescend Technologies, among others. Keynotes include Mike Wolf (Founder of The Spoon, on the AI shift in food technology) and Dr. Naoki Shinohara of Kyoto University (on microwave power transfer for a sustainable future).

The symposium also features two short courses on June 16 — Microwave & RF Safety and Microwave Processing for the Future of Food — alongside a dedicated Solid State RF Energy Section networking luncheon. For the solid-state RF community, that luncheon is a direct legacy of the work pinkRF helped initiate back in 2019.

pinkRF and the Founding of IMPI’s Solid State RF Energy Section

To understand pinkRF’s standing at IMPI today, it is necessary to look back to 2019 — a pivotal year for the solid-state RF energy industry in Europe and globally.

When the RF Energy Alliance (RFEA), the industry’s non-profit association dedicated to promoting solid-state microwave technology for energy applications, disbanded at the end of 2018, it left a vacuum. Klaus Werner, former Executive Director of the RFEA and Director at pinkRF, saw an opportunity rather than an ending.

“We’re very happy and thankful that the IMPI organization has welcomed us with open arms. Although the RFEA had to close down, the vision and mission of the former organization are still completely valid and relevant to the state of the solid state RF energy industry.”
— Klaus Werner, pinkRF, on the founding of IMPI’s Solid State RF Energy Section (May 2019).

In late April 2019, Werner petitioned the IMPI Board of Governors to form a dedicated Solid State RF Energy Section within IMPI. The vote passed with overwhelming support. The Section held its inaugural meeting on June 21, 2019, at the conclusion of IMPI’s 53rd Annual Symposium in Las Vegas.
pinkRF (represented by Stephan Holtrup and Klaus Werner) was among the eight charter founding members of the Section, alongside Rogers Corp., MACOM, Ampleon, Huber + Suhner, PrecisePower, Cellencor, and NXP. The Section’s founding vision — fostering solid-state RF technology adoption through broad collaboration across the entire value chain — remains the guiding principle of the SSRFE Section at IMPI 60.

This history is not merely institutional. It explains why, at IMPI 60, pinkRF is not just attending — it is helping to lead.

Paper 1 — Solid State RF Energy Generators and Systems: ‘Efficiency’ Demystified

In the world of microwave and RF energy systems, “efficiency” is one of the most commonly cited — and most inconsistently defined — metrics in technical literature and commercial specifications. Engineers, procurement managers, and system integrators regularly compare systems using efficiency figures that are measured at different points in the energy chain, making valid comparisons nearly impossible.

Klaus Werner’s presentation at IMPI 60 takes on this fundamental challenge head-on. The paper proposes a common efficiency framework for solid-state RF energy generators and systems, tracing the energy conversion path from the point where a cable enters the wall socket all the way to the energy that actually reaches the product or process being treated.

Every stage in between — AC/DC conversion, DC/RF conversion, transmission line losses, coupling efficiency at the load — represents a loss that must be accounted for. Without a shared language and measurement methodology, the industry cannot make meaningful progress in comparing, benchmarking, or improving system-level efficiency.

This is not an academic exercise. Efficiency claims directly affect capital expenditure decisions, energy cost projections, and sustainability reporting for industrial customers deploying solid-state RF systems in applications ranging from food processing and plasma generation to diamond CVD and chemical synthesis. A unified framework enables fairer competition, better engineering, and more credible environmental impact assessments.

The paper reflects pinkRF’s broader mission: not only to build better solid-state RF generators, but to elevate the technical standards of the entire industry. Klaus Werner, as a founding figure of IMPI’s Solid State RF Energy Section and former Executive Director of the RF Energy Alliance, brings both the historical perspective and the technical authority to make this case at the highest level.

Paper 2 — Monitoring of Chemical Synthesis via S11 Measurement in a Microchemical Reactor

This collaborative research paper — co-authored by scientists from the Polytechnic University of Valencia, the University of Valencia, and pinkRF — presents a novel approach to monitoring chemical synthesis processes in real time, using S11 (reflection coefficient) measurements inside a microchemical reactor.

S11 — the parameter that describes how much microwave power is reflected back from a load — has traditionally been used primarily for impedance matching and system tuning. This research demonstrates that S11 signatures can also serve as a precise, real-time diagnostic tool for tracking the progress of chemical reactions within a microwave-driven microreactor, enabling non-invasive, in-situ process monitoring without requiring additional analytical instruments.

Microchemical reactors represent one of the most exciting frontiers in process chemistry: they offer dramatically improved heat and mass transfer, lower reagent consumption, and easier scalability compared to conventional batch reactors. When driven by microwave energy, they add the further advantages of selective and rapid heating. The ability to monitor the synthesis process via S11 — in real time, using the RF system’s own signal — is a significant step toward closed-loop, self-optimizing microwave chemical reactors.

For pinkRF, whose solid-state generators already offer full digital control of frequency, phase, and amplitude, this research opens a direct path toward smart RF systems capable of adapting their output parameters in response to real-time process feedback — a fundamental capability for Industry 4.0 manufacturing in chemistry, pharma, and materials science.

The collaboration between pinkRF and two leading Spanish universities also demonstrates the company’s commitment to advancing the scientific foundations of the field through open research partnerships.

What Is a Lab-Grown Diamond?

A lab-grown diamond is a real diamond. It shares the exact same chemical composition (pure carbon), crystal structure (cubic), and physical properties as a mined diamond, including a perfect 10 on the Mohs hardness scale. The only difference is its origin: instead of forming over millions of years under Earth’s mantle, it grows in a controlled laboratory environment in a matter of weeks.

Certified gemological laboratories such as GIA and IGI evaluate lab-grown diamonds by the same 4C standards — cut, color, clarity, and carat — as mined diamonds. Increasingly, consumers and jewelry brands are choosing lab-grown diamonds for their traceability, purity, and reduced environmental footprint.

The CVD Method: Growing Diamonds Layer by Layer

There are two main techniques to produce lab-grown diamonds: HPHT (High Pressure High Temperature) and CVD (Chemical Vapor Deposition). While HPHT replicates the extreme pressure conditions found deep within the Earth using mechanical presses, CVD grows diamonds from a gas phase — and this is where RF technology becomes essential.

How the CVD process works step by step

• A thin diamond seed (usually 0.3–0.5 mm thick) is placed inside a vacuum reactor chamber.

• A hydrocarbon gas mixture — typically methane (CH₄) and hydrogen (H₂) — is introduced at low pressure.

• Microwave RF energy at 2.45 GHz ionizes the gases, creating a plasma ball at temperatures up to about 4,000°C.

• The plasma dissociates methane molecules, releasing highly reactive carbon atoms.

• These carbon atoms deposit layer by layer onto the diamond seed, which is held at a controlled temperature of 800–1,200°C.

• Over weeks, the diamond grows vertically, forming a gem-quality single-crystal structure.

The quality, color, and size of the resulting diamond are directly determined by how well the plasma is controlled throughout this process. That control comes from the RF generator.

The Critical Role of RF Technology in Diamond Growth

RF technology in the MPCVD (Microwave Plasma CVD) process serves as the engine of the entire operation. Without a stable, precise RF source, the plasma becomes unstable, leading to crystal defects, inclusions, or inconsistent growth rates that reduce the final gem’s value.

Key functions of the RF generator in CVD diamond production

• Plasma ignition and sustenance: The RF generator ionizes the gas mixture and maintains a stable, uniform plasma ball over the seed for days or weeks without interruption.

• Precise energy delivery: Frequency, phase, and amplitude must be digitally controlled and adjusted in real time to prevent plasma fluctuations that create growth defects.

• Thermal management: Stable RF output ensures consistent substrate temperatures, which directly affects crystal clarity and growth rate.

• Scalability: Higher RF power levels allow the growth of larger diamond substrates and multiple seeds simultaneously, enabling industrial-scale production.

Magnetron vs. Solid-State RF Generators: Why the Difference Matters

Traditionally, CVD diamond reactors have relied on magnetron tubes to generate the 2.45 GHz microwave energy needed to sustain the plasma. While magnetrons are less expensive, they introduce significant limitations in a precision manufacturing context. pinkRF’s solid-state technology addresses every one of those limitations.

pinkRF MPG10kS: The Solid-State Microwave Generator for Diamond CVD

The MPG10kS is pinkRF’s flagship solid-state microwave power generator, purpose-built for demanding plasma applications such as MPCVD diamond growth. It delivers up to 10 kW of continuous microwave power at 2.45 GHz with industry-leading specifications.

• Output power: Up to 10 kW continuous at 2.45 GHz

• Efficiency: >61% — significantly above legacy magnetron solutions

• Frequency agility: Digital tuning to optimize plasma coupling in real time

• Phase control: Full phase and amplitude management for plasma stability

• Digital integration: Complete API access for process automation and data logging

• Feedback algorithms: Intelligent closed-loop control for reproducible crystal growth

• Reliability: Solid-state design with no consumable tube to replace

For CVD diamond manufacturers, the MPG10kS means fewer production rejects, shorter growth cycles, and the ability to scale output without sacrificing gem quality. The fully digital control interface also enables integration with Industry 4.0 manufacturing workflows.

Sustainability and RF Technology: A Brilliant Alliance

The environmental case for lab-grown diamonds is compelling: multiple studies show that well-optimized MPVCVD lines, specifically when powered by low-carbon electricity, can achieve significantly lower CO2 emissions per carat than typical open-pit mining operations; and avoid the displacement of ecosystems and communities. But the sustainability story does not end at the mine gate — it extends into the energy efficiency of the growing process itself.

By operating at over 61% electrical efficiency, the MPG10kS consumes significantly less power per carat grown compared to magnetron-based systems. When paired with renewable energy sources — which many forward-thinking diamond labs are now adopting — pinkRF technology enables the production of diamonds with an extremely low carbon footprint.

• No mining waste or tailings

• Drastically reduced water consumption vs. open-pit mining

• Lower CO₂ emissions per carat

• Compatible with 100% renewable energy inputs

• Less atmospheric pollution compared to traditional extraction

Integrating smart RF systems like the MPG10kS allows diamond foundries to scale production responsibly, maintaining a commitment to both technological excellence and environmental stewardship.

Frequently Asked Questions About RF Technology and Lab-Grown Diamonds

Are lab-grown diamonds real diamonds?

Yes. Lab-grown diamonds are chemically, physically, and optically identical to mined diamonds. They are graded by the same international standards (GIA, IGI) and score 10 on the Mohs hardness scale.

What frequency does the CVD diamond process use?

The standard frequency for MPCVD diamond growth is 2.45 GHz — the same ISM-band frequency used in microwave ovens. pinkRF’s MPG10kS generates this frequency with precise digital control.

Why is solid-state RF better than a magnetron for growing diamonds?

Solid-state generators provide superior frequency stability, longer operational life (10,000+ hours vs. 1,000–3,000 for magnetrons), higher efficiency (>61%), and full digital control — all of which result in more consistent, higher-quality diamond growth.

How long does it take to grow a diamond using CVD?

Depending on the desired size and quality, CVD diamond growth typically takes between 2 and 4 weeks for a 1-carat gem-quality stone. Larger stones require proportionally more time.

Does pinkRF supply to industrial diamond manufacturers?

Yes. pinkRF’s solid-state RF generators are designed for industrial plasma applications including MPCVD diamond production. Contact our team to discuss your specific power and integration requirements.

Conclusion: The Diamond of the Future Is Grown, Not Mined

The diamond of the future is not extracted from the earth with heavy machinery — it is cultivated with scientific precision, atom by atom, powered by advanced RF technology. At pinkRF, we are proud to provide the solid-state microwave generators that make this revolution possible, delivering the control, performance, and reliability that elevate the standard of what RF technology can achieve in fine jewelry and industrial diamond applications.

Whether you are building a new MPCVD reactor line or upgrading from legacy magnetron systems, pinkRF’s engineering team is ready to help you achieve the power stability and process control your diamonds deserve.

Why pinkRF, Why Now

The First Priority: Listen Before You Act

The Shift We Need to Make

Where We See Real Opportunities

What Makes the Difference

Building the Company Around It

The Road Ahead

The Old Way Was Holding Industries Back

Solid-State RF Energy: A New Paradigm?

What Is the Efficiency of the RF Generator?

Precision and Control: The Efficiency Multipliers

Scalability Without Compromise

Beyond Hardware: Efficiency as a Service

The pinkRF Difference
